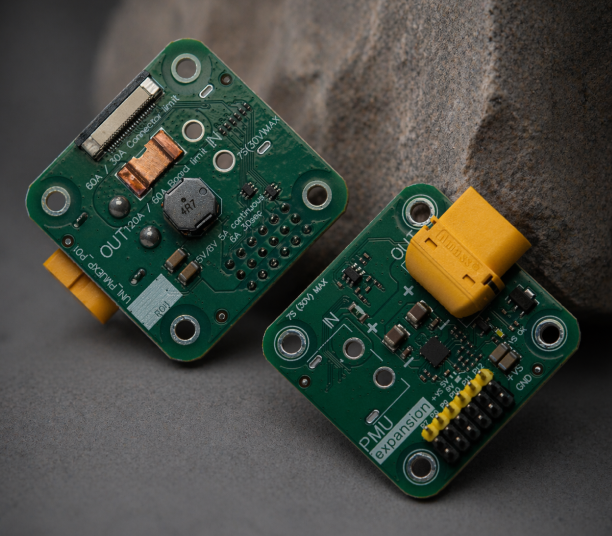

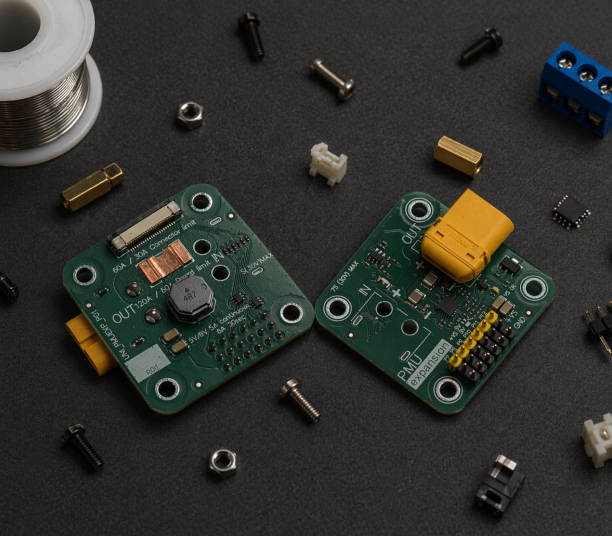

H7 PMU EXPANSION MODULE

• Integrated BEC 4A (5A peak) to power and control up to 6 servos Selectable output voltage: 5V / 8V
• Current measurement: 60-70A continuous, up to 120A short-term
• Battery input, ESC connection, and flight controller power supply
• Mounting holes: 30.5 x 30.5 mm (can be stacked with the flight controller)
• Includes XT60 connectors and servo header pins for quick installation

Description

Combines current measurement and servo rail functionality in a single module.
Supports selectable output voltage of 5V or 8V for the servo rail, making it a versatile solution for different types of servos.
