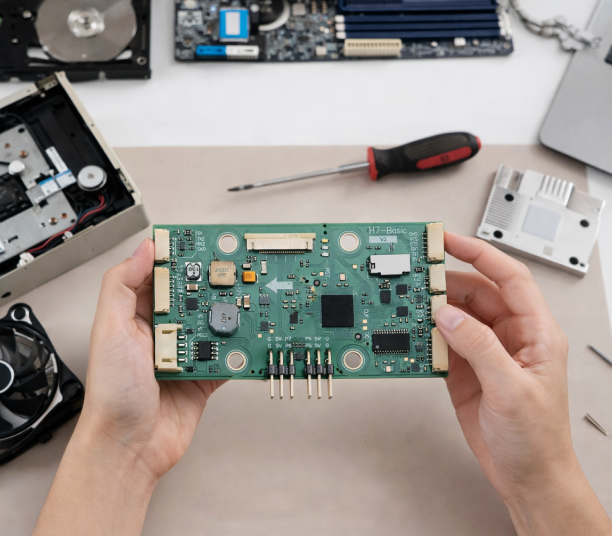

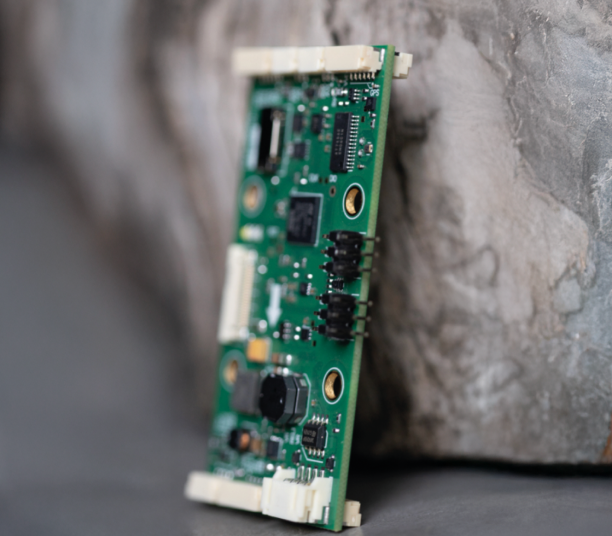

H7 FLIGHT CONTROLLER

• Processor: STM32H743 with 2 MB memory
• Cameras: Connection and switching of 2 analog cameras, support for digital FPV systems
• BEC: 5V 2A for connecting 2 servos (PWM, 5V, GND)
• Flight features: Radio silence mode, return-to-home by compass, ballistic assistant, video channel switching
• IMUs (3): ICM42688-P, ICM42688-P, BMI270
• Barometers (2): DPS310, BMP390
• Relays: Control of two electro-lock payload release systems
• Outputs: 12× PWM, 7× Serial, 2× CAN, 2× I2C
• Mounting holes: 30.5 × 30.5 mm

Description

Autopilot module based on the STM32H743 processor, fully supporting the complete functionality of ArduPilot. Includes advanced power management features, allowing operators to control connected devices directly from the transmitter.

Built-in protection on all outputs against short circuits and voltage spikes from servos. Peripheral issues does not lead to the shutdown of the entire system, ensuring continuous and safe operation in mission-critical UAV applications.
