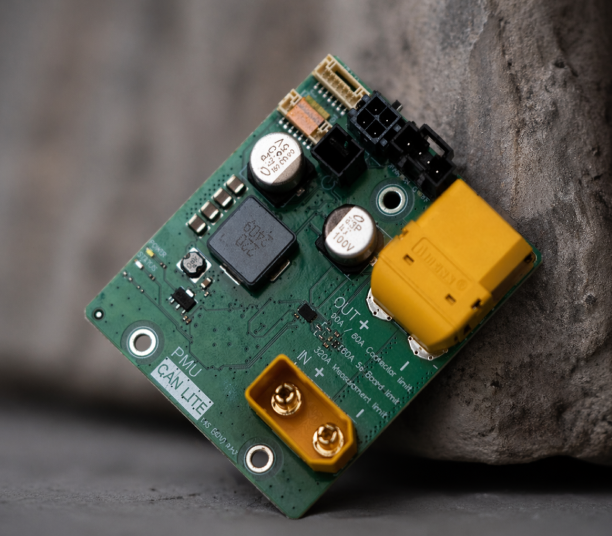

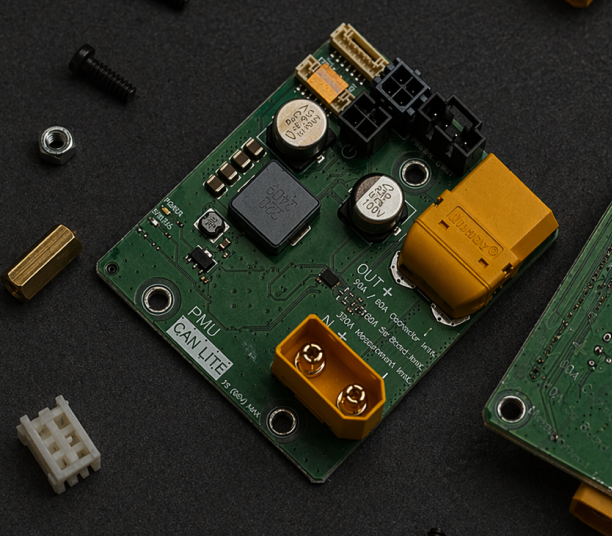

CAN PMU LITE 14S 100A

• Supports continuous current up to 100A (160A for 5 sec.)
• Reverse polarity protection on all outputs except ESC
• 2x VBAT outputs for peripheral power (7A total current)
• Main power switch (controls everything except ESC
• Built-in connector for 1x ESC control (PWM, GND, telemetry, OFF)
• High EMI resistance ensured by CAN bus communication

Description

Current & Voltage Measurement Module for UAV Systems
Provides stable power supply to the flight controller and peripherals via CAN port (17V).

Integrated current sensing enables optimal battery usage by monitoring energy consumption, tracking remaining capacity, and preventing critical failures.
